SW Receiver_Superregen_2T_LM386_Hendricks Scout Regen Kit


The variable capacitors are the usual 160+60pF gang capacitor. One for tuning and the other for regen. The regen one C5 is ganged (connected in parallel to form ~220pF). The tunning one C3 is 75pF for 5-10MHz and 220pF for 2-5MHz by connecting the two in parallel. The first transisto act like an RF amplifier in a common base to make the input impedance the maximum. The second transistor is an FET acting like a regenerator-detector.

The 1mH RFC prevent the RF regenerated from making -ve feedback or in other word being wasted. R3 and C8 act like a quench-filter to get the audio signal. LM386 is a 200 times output amplifier and able for a speaker. Here two diodes are used as limiters to stop and high sudden harmful sounds to the ear! The original design suggests phone.


Here a Frequency Counter is added to it!

Also here is good building experiment depending on Hendircks kit

Saturday, February 27, 2010

MW Receiver_Reflex_2T


Artistry in Reflective Light
Casting a Plastic Radio Case

Having been attracted for years to colorful plastic radios, particularly Catalin, I decided to see if I could recreate one. The word "Catalin," as with Coke or Xerox, is a brand name that in the 1940s became a more universal name for colorful cast phenolic plastics used in radios, jewelry, and cookware. Catalin plastic can be opaque, translucent, solid colored or swirled. You can see examples of Catalin radios in the eBay auction images.

Construction Procedure

After I drew up the design I wanted, I made a plexiglass model. On it I painted 8-10 layers of latex to make a mold. Then I mixed two part epoxy with cadmium yellow acrylic paint and red marine epoxy coloring to cast the case.

The yellow louvers were cast in plastic tubes from the hobby shop; the recessed knobs were cast on the hemispherical end of a cigar tube surrounded by straws, arranged gatling gun style. That formed the fluted knobs.

The translucent tuning dial was cast out of the same plastic with a mold that used the top of a spice jar featuring a nice ring. There had to be a better way than waiting for eight layers of latex to dry, and sure enough, hot melt glue makes a dandy mold for small parts.

The translucence was achieved by vigorously mixing the resin & hardener so that tiny air bubbles formed, spreading themselves uniformly throughout the mixture.

I used Microsoft Publisher and my ink jet printer for the dial numbers. The ring of numbers is printed on overhead projector transparency plastic. I then cut out the circle and embedded it in the curing epoxy. The edge and surface imperfections mysteriously and beautifully disappear when it's embedded.

How does the radio perform? I was able to optimize the circuit so it plays AM at room filling volume, gets 20 locals up to seventy miles away, quite a feat with only two transistors and an internal antenna.



Here's what's inside. The two transistor reflex circuit is a supremely elegant and efficient circuit. The circuit I used was designed by G.W. Short and published in 1968 in Radio Constructor, a British periodical.

I actually built the circuit first and was looking for a worthy cabinet for it when I got the idea to cast plastic

Comparing this picture with the image above, you can see how the tuning and volume knob shafts mate with the knobs.


This side view shows the bending of the chassis, which started out as a 4" x 10" piece of aluminum from the hardware store. The ferrite bar antenna (with the green end at top) is from a radio I found in a garbage can on the side of the road.

I etched the circuit board and modified a few components to optimize the circuit. During final assembly I shortened the bottom shaft to make it match.



This back view is what shows when you take the back off the radio. The battery is situated for easy access.

I've had the gears for years in my junkbox; they are from a defunct copier, and I intended to use them in part a of a telescope drive. Here they are configured as a fine tuning control. Because tuning capacitors only rotate 180 degrees, the 1:2 ratio also permits the dial numbers to be spread around the full circumference of the dial.



Schematic

The entire reflex transistor construction article can be found here.
Then scroll down to Silicon Reflex, by G.W. Short.

Source: http://www.tompolk.com/radios/catalincasting/catalincasting.html

MW Receiver_3T_Darlington Amplified Crystal Radio



Adapted from an article by A.J. Crighton published in the August 1978 edition of Everyday Electronics Magazine
After the introduction of the Ferranti ZN414 Integrated Circuit in the 1970's there were many articles published that provide details of simple radio circuits that used the I.C. The ZN414 is no longer made, but a new and almost identical I.C., the MK484, can substituted in all the ZN414 circuits and has proved to be a least, if not more, effective.

In the 1970's the ZN414 could be quite expensive to buy compared to cheap transistors and so this article was published in Everyday Electronics magazine as an inexpensive alternative. Today some readers may find it difficult to obtain the MK484 so this circuit still holds great value.

This design uses three cheap transistors, the BC548 as can be seen from the diagram below.

Circuit Diagram

The Medium Wave Mini circuit diagram

The tuned circuit, L1/C2 selects the required station, transistor TR1 providing the r.f amplification. The signal is then passed to TR2, a small amount of the signal is fed back from the collector to the base of TR1 via the tuned circuit. A mixture of both radio frequency and audio frequency circulates in this feedback loop, the r.f. reinforcing that coming via the tuned circuit, while the a.f. is passed to the audio stage.

Transistor TR3 provides audio amplification that is enough to drive a crystal earphone which is plugged into the socket SK1

Most of the components are mounted on a small piece of plain matrix board having 13 by 7 holes as shown below:



Wiring details for the matrix board and other components





Modification required to the open frame jack socket
to make an 'on-off' switching arrangement, and
other layout details

Connections to the components are made using single cored wire on the underside of the board, this layout enables a smaller layout than using stripboard, however some experimenters may still wish to alter the layout to suit construction on 'strip board'.

The aerial coil L1 is 80 turns of 32 s.w.g. enamelled copper wire close wound onto a small ferrite rod. The jack socket serves as both a connection for the earphone and a power switch. One of the switch contacts must be bent slightly out so that they 'make' contact when the phone plug is inserted rather than the usual 'breaking' action when the plug is inserted. As can be seen from the circuit diagram the power switching is applied in the negative side of the circuit.

The tuning capacitor C2 is a typical miniature polyvaricon type that is widely available from electronic component suppliers and which can be seen in most pocket type transistor radios. If this variable capacitor has two gangs then usually only one gang will be required although some types may require that the two gangs are wired in parallel in order to be able to tune to the lower end of the medium wave band.


PARTS REQUIRED
Resistors - all 1/4 Watt carbon +/- 10%
R1
100 k
R2
2.7 k (see text)
R3
100 k
R4
1.5 k
Capacitors
C1
0.01 uF Ceramic
C2
250pF Variable
C3
0.1 uF Polyester
C4
0.47 uF Electrolytic
Semiconductors
TR1, 2, 3
BC548 npn silicon
Other Items
SK1
3.5mm open frame jack socket (see text)
L1
45mm x 10mm Ferrite Rod and 32 s.w.g. enamelled
copper wire (see text)
B1
1.5 volt battery
0.1 inch Matrix Board 13 x 7 holes; Small plastic Case 60 x 40 mm;
Crystal Earpiece; Tuning Dial or Knob for C2; Thin Hook-Up Wire



Circuit Board

The completed circuit board

USING THE MEDIUM WAVE MINI RADIO

Before switching on for the first time, double check that all the components are wired up properly and that the battery is connected the the correct way round. When you are happy that there are no mistakes plug in the earphone, this will energise the circuit and some background noise should be heard in the earphone.

Adjusting the tuning control should produce a few local transmitters, the number of stations available will depend on the location and the strength of signals available. The tuning is quite sharp and therefore some care is needed when using the control. The ferrite rod is directional and so the radio should be rotated in both planes for maximum signal pick-up for each radio station.

If a whistle occurs then this can be reduced by increasing the value of the 2.7k resistor, R2, to 3.3k Ohms. It may be possible to replace this fixed value resistor R2 with a sub-miniature preset resistor to make fine adjustments.


Medium Wave Mini

The Completed MEDIUM WAVE MINI Radio


Mini Radio By Karen Orton

Above is a MINI-RADIO made by Karen Orton.
Visit Karen's excellent technical webpage HERE

Also see this page by Charle Wenzel:

MW Receiver_Superhet_OP AMP Radio_No Coil

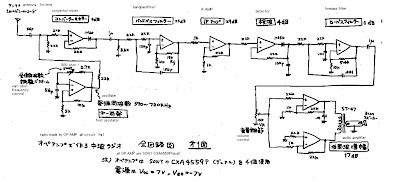

This is normal superheterodyne radio receiver. It does not use any coils. It uses a filter andoscillator made by OP-AMP. Converter is also constructed by a OP-AMP detector.

When the plus input is positive , it pass through the antenna signal. When the plus input is negative , it does not pass through the antenna signal. Therefore antenna signal is converted to 40kHz IF signal. IF filter is constructed by the low pass filter. Q of it is higher than 1. So it works as a band pass filter. See fig 4! IF-AMP is a normal non-inverted-AMP. Detector is OP-AMP detector. You can use a normal diode detector indicated in fig 3. But I wanted to use OP-AMP also in this block. Low pass filter selects only audio signal. The output impedance of OP-AMP is about 1k ohm. Therefore it can not drive a speaker directly. So I use a transformer. But now I think it is better to use a emitter follower indicated on another page. I can hear JOAK(594kHz) and JOAB(693kHz) by tuning the oscillator. This radio has the total gain 4+23+29+4+17=77dB. 1m wire is enough antenna.

MW Receiver_Reflex_1T_1IC_LM386

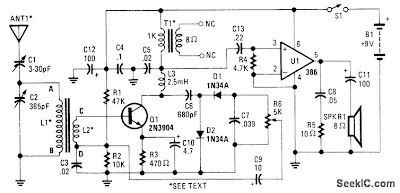

The RF signal is passed from the antenna through C1 to the tuned circuit made up of L1 and C2.One end of L2 feeds the RF signal to the base of Q1 for amplification and the other end ties to the junction ofR1and R2 to supply bias to the transistor.A 0.02-μF capacitor,C3,places the“D”end of L1 at RE ground.
The amplified RF signal is fed through C6 to a two-diode doubler/rectifier circuit and then on to the volume control,R6.The wtper of R6 feeds the detected audio signal through C9 to the junction of R1,R2,and the“D”end of u.The“D”end of L2 is at RF ground,but not AF ground,allowing the AF signal to be passed through L2 to the base of Q1 for amplification. The junction of the 2.5-mH choke and T1 is placed at RF ground through C5. The amplified audio is fed from this junction to the input of the 386 audio amplifier,U1,to drive the 4"8-Ω speaker.The single transistor has performed a dual duty by amplifying the RF and AM signals at the same time.

Source: http://www.seekic.com/forum/22_Circuit_Diagram/25632_REFLEX_RADIO_RECEIVER.html

MW Receiver_Reflex_2T_1IC_LM386




Radio circuits built by Don Cross

Reflex AM receiver – August 2009

I am very pleased to report that I have finally built a radio receiver that is good enough that I can enjoyably use it!

This receiver is a modification of Charles Wenzel's Two Transistor Reflex Radio. Instead of a ferrite AM loopstick antenna, I use a magnetic loop antenna, and I added an LM386 amplifier stage to drive an 8-ohm speaker. There is a switch to select whether this amplifier should be used to power the speaker or whether crystal earphone listening is desired. I use six AA rechargeable NiMH batteries to provide the 8V power supply, but a 9V alkaline battery or a 6V lantern battery work just fine. I think even a small solar cell array would suffice to power this thing if you were camping on a sunny enough day!

receiver prototype
Prototype receiver on breadboard. I will soon move all parts currently mounted on the breadboard to a soldered circuit board. I will also add interface connections with screws on the wood base, so that I can swap out other receiver modules to the same wooden box.
finished receiver
Update – 25 August 2009. The finished AM receiver. The detector and audio amplifier circuitry is now soldered to a permanent circuit board. I added a handle to make it easy to carry the radio around.
finished receiver, inside view
Close up view of the inside of the finished receiver. I have the schematics folded up inside a small zipper-style plastic bag, attached to the inside of the wood frame using Velcro. The screw connections facilitate removing the circuit board and replacing it with other experimental designs.

Notes about this circuit

  • The magnetic loop antenna is depicted as a transformer. It is actually a pair of hand-wound rectangular loops of enameled magnet wire, about 5.5 inches by 4.5 inches. If I build another one of these receivers, I will wrap maybe 16 or 18 turns instead of 20 on the tuner side to bring down the inductance so that I can tune higher on the AM band.
  • The antenna is highly directional. You have to rotate the radio to aim it at the desired radio station. More specifically, for strongest reception of a nearby station (i.e. not receiving by skywave propagation) the radio station must lie in the plane of the loop, and that plane must be at right angles to the ground. (Apparently the magnetic component is polarized horizontally.) If you rotate the radio 180° around a vertical axis, its reception of a given station will be the same. This directionality can be used to advantage. Where I live there are two radio stations close together in frequency: 1030kHz and 1060kHz. However, it is fortunate for me that they are about 60 degrees apart in terms of compass direction from my house. Selectivity of this receiver is pretty good, and with proper aiming I can almost completely block out one of the two stations and focus on the other. I even put felt feet on the bottom of the chassis (the kind used on chair legs to prevent scuffing the floor), so that I can easily spin the radio around without scratching the table it is on!
    UPDATE (27 August 2009): Try out my online Azimuth/Distance calculator page to determine the exact compass direction and distance of a radio station! Use Google Maps or Google Earth to find your exact latitude and longitude. Use this as "Point A" in the calculator. Use the FCC online AM radio station database to find the coordinates of the transmitter. Use this as "Point B". The calculated azimuth tells you how many degrees clockwise from North the station is from your location.
  • The Band switch selects whether you are tuning the lower or higher end of the AM broadcast band. When the 220pF capacitor C1 is connected in parallel with the tuning capacitor, the tuner can reach down to well below 540kHz. With C1 disconnected, the tuner can reach as high as 1100 kHz. Where I live there aren't any stations I care about above this frequency, but in the future the aforementioned decrease in the number of turns in the magnetic loop antenna should better fit the AM band.
  • The Output Select switch (see lower left in schematic) toggles between driving the high-impedance crystal earphone or the 8-ohm speaker via the LM386 amplifier. In earphone mode, the receiver draws a miserly 1.5mA of battery current; that could make your battery last for hundreds of hours! (At least, I think so. I am still in the process of testing practical battery life with my NiMH rechargeable batteries.) In speaker mode, the current consumption is more like 8mA to 15mA, depending on the volume setting.
  • When the Output Select is set for earphone mode, the Volume knob has no effect. Use the Regen to get the best volume you can without distortion. You won't get head-banging rock concert volume, but you will be able to hear talk radio quite clearly.
  • In speaker mode, you need to adjust both the Regen and Volume knobs to get proper balance between volume and distortion.
  • If the 470K resistor R7 is replaced with a wire, you get problems with oscillations (so-called "motor-boating"). Looking at the LM386 data sheet, I see that there is a 50K resistance between the amplifier's positive and negative inputs. Apparently R7 limits the audio-frequency current flowing through C7 enough to stabilize the circuit. When I started this project, I had a wire instead of R7 and I was trying to figure out how to fix the oscillation problem. I disconnected the wire and noticed that if I touched one of my fingers to the wiper pin of the Volume potentiometer, and another finger to pin 3 of the LM386, the radio suddenly started working! I played around with various resistors in the range 100K to 1M and settled on 470K as a good value. If you build this receiver, try various values; another might work better for you.
  • The potentiometer I use for the Volume knob has a built-in SPDT switch. I use this as my power switch: when Volume is turned all the way down, it clicks off.
  • My design is a lot bulkier than is really needed, but I did this on purpose to make future experimentation easier. I want a lot of room for my large hands to move around! I want to be able to re-use the chassis, antenna, and controls for other experimental circuits, so I'm designing it to allow the receiver circuit board to be swapped out with other designs.
  • The LM386 data sheet gives an example value of 10µF for the capacitor I call C10 in the schematic. I started out with this value, but I found the audio to sound "muddy" when the volume knob was turned up too high. In fact, there was a tendency to oscillate past a certain point. After experimenting, I settled on 2.2µF as a better fit. It reduces bass while leaving midrange and treble strong, and allows better fidelity sound at higher volume settings. I tried as low as 0.2µF, but at that point the sound was too tinny and wasn't capable of the volume level I wanted.


Experimental determination of inductance L and parasitic capacitance Cx

Tonight (28 August 2009) I had fun with an experiment to figure out the inductance of the tuning coil (the 20 turns of magnet wire), along with its so-called "parasitic" capacitance. I tuned the receiver to 6 different radio stations. For each radio station, I turned the receiver off, disconnected one of the tuning capacitor wires, and measured the tuning capacitor with my capacitance meter.

Now in each case, I know both the frequency of the radio station f and the tuning capacitance Ct. If you look at the schematic above, you will note that the 220pF capacitor labeled C1 (which I will call Cf here) can be included or excluded from the tuning circuit, using the "band" switch. I was able to tune two of the radio stations (WDBO and WORL) with either band switch setting, because they broadcast on frequencies included in the overlap of both bands. I recorded the band switch setting in all measurements. Overall, I took a total of 8 measurements of the 6 stations, with WDBO and WORL having 2 measurements each (one for each band switch position).

My goal was to solve for two unknowns: inductance L and parasitic capacitance Cx. The total capacitance of the tank circuit is

C = Ct + BCf + Cx
where B indicates the state of the band switch: when that switch is closed, the capacitor Cf is included and B=1. When the switch is open, Cf is excluded andB=0.

The relationship between frequency, total capacitance, and inductance is

LC = 1012 / (2πf)2
The factor of 1012 is needed to correct for the fact that f is expressed in kHz and LC is expressed in pF*μH. If "pure" units of Hz, F, and H were used, this numerator would simply be 1. The squared reciprocal of kHz makes the answer 106 times bigger than it would have been with Hz, because now we are dividing by a number that is a million times smaller (a thousand squared). By definition, there are 1012 pF in one farad, and 106 μH in one henry. Putting all of this together, we get a correction factor of 10(12 + 6 − 6) = 1012.

I made a spreadsheet that used this formula to calculate the value of LC for each station frequency f, recorded the tuning capacitor Ct measurements, and had a box where I could modify my guess for the value of Cx. When I divide the calculated value of the product LC by the total capacitance C, I get a theoretical value for the inductance L. By trial and error, I settled on an optimal value for Cx = 38.5pF, and modified the nominal value of Cf to be 223pF to make all the Lvalues as close together as possible. Here is table that shows what my spreadsheet looks like:

stationf [kHz]LC [pF*μH]Ct [pF]BC [pF]L [μH]
WFLF540868672181479.5181.16
WDBO580752981551416.5180.79
WDBO580752983780416.5180.79
WORL66058150651326.5178.10
WORL660581502880326.5178.10
WYGM740462572210259.5178.25
WONQ103023876910129.5184.37
WSDO14001292433071.5180.75

Based on these data, I have the following estimates:

L = (180.2 ± 4.6) μH

Cx ≈ 38.5 pF

I used two standard deviations around the mean value for the uncertainty of L.

(Update: 9 September 2009) I realized I should go back and measure the resistance of the magnetic loop antenna. It turns out to be 3.0 Ω.

This kind of analysis should help me design better hand-wound magnetic loop antennas in the future. Ideally, I may be able to design a tuner that doesn't need a band switch to cover the entire AM band. Another possibility is that I may be able to design a tuner that uses a variable inductor instead of a variable capacitor to tune to various stations. In general, it will be interesting to compare experimentally determined coil behavior with the values I get from the various formulas for estimating inductance based on coil geometry.


Source: http://cosinekitty.com/radio/

MW Receiver_Reflex_1T_1IC_LM386_Loop Antenna



An unusual AM reflex T.R.F. receiver with loop antenna.

A short explaination of amplitude modulation.

AM radio receivers receive or demodulate amplitude modulated (AM) signals. The most common source of these signals is of course todays Standard AM Radio Broadcast Band but shortwave stations use AM modulation as well. Amplitude modulation was really developed between 1900 and 1917 by amateur radio experimenters ("hams"). Then when WW1 ended, commercial AM radio broadcasts began.

Amplitude modulation means that the output power of a radio stations transmitter increases or decreases in accordance with the music or voice that is being transmitted. If we string out a length of wire, some of that transmitted energy will cause a small current to flow in our wire. That current will increase and decrease in step with the modulation of the carrier wave and if we hook the wire to a diode detector, the detector will detect or demodulate the signal leaving only the audio. Now if we listen in a little earphone we hear the music or voice being transmitted. Here is the problem, you will also hear every other radio station within range, and all at the same time! We need a filter. Now, if you have a coil of wire the right diameter and with the correct number of turns you can use that with a capacitor to select only the station you want and reject all the others. This is the basis of this little AM receiver project.

GregsBasicElectronics.com - AM Loop Reflex Radio

This radio is unusual as it is a reflex type circuit. The term reflex means a circuit is amplifying two different but related signals at the same. In this case RF and Audio. Reflex circuits were very popular in years past but not used much today.

This radio consists of the resonant loop antenna, an RF/audio pre-amp, diode detector, and a IC audio power amplifier. The loop antenna can be tuned across the AM band and has an OK 'Q' so it's fairly selective. The output of the loop goes to the transistor RF amplifier and then to the diode detector for demodulation. The audio output from the diode is then fed back into the transistor via the loop. This time the transistor acts as an audio amplifier. The audio now goes to the IC power amplifier and then to the speaker or headphone. The advantage of this radio over a crystal set, is it does not need a long wire antenna or a good earth ground to work. The disadvantage is that it requires power to operate but has enough output to drive a small speaker. The other nice thing is since it's a T.R.F (tuned radio frequency) type radio, the received frequency depends only on the number of turns on the loop. If you want a shortwave radio use less turns. For a VLF radio use more. More on this topic later. This radio is not the most sensitive thing you will ever see, but it will do a very surprising job and it's easy to build.

am reflex radio schematic

Parts List

CapacitorsResistorsTransistorsDiodesIC'sMisc.
C1 360 pF variable
C2 .047 uF
C3, C5 .001 uF
C4, C7 0.01 uF
C6 1 uF 16v
C8 470 uF 16v
C9 100 uF 16v
C10 0.1 uF
R1 82K 1/4 watt
R2 10K 1/4 watt
R3 470 ohm 1/4 watt
R4 4.7K 1/4 watt
R5 33K 1/4 watt
R6 5.6K 1/4 watt
R7 10 ohm 1/4 watt
VR1 10K audio pot
Q1 2N3904 NPND1 1N34 germaniumU1 LM386S1-- s.p.s.t. switch
RFC1-- 100uH
9V battery
Small speaker

2N3904 lead connectionsLM386 lead connections


Loop Antenna Construction

The loop antenna is made out one piece of 1X2 pine lumber 6 feet long. Cut the piece in half so that each section is now 3 feet long. Find the center of each and cut a slot the exact width width of the narrow dimension (3/4") on both sections the cut should extend down half way through the piece on each. Now slide and tap the two sections together to form a "X". You may want to glue the two together.

Insert two small wood screws side by side near the center of the "X" on one of the cross arms. This will be the starting and ending points for the wire that is wound around the outside of the "X" forming the main antenna. Now insert two more wood screws on the oposite side of the first two. This will be the starting and ending points for the single turn loop of wire that couples the main loop into the radio.

Starting at one of the two side by side screws, wrap the wire around the screw a few times to hold it and then begin to wind the main loop using 26 gauge enameled copper magnet wire. Leave at least 6 inches of wire "free" so you can connect later. Wind 6 turns of wire around the loop and then back down to the other screw, leaving 6 inches free again before cutting. Try to keep the windings good and tight as you go around.

Now beginning at one of the other two screws, begin winding a single turn of wire around the loop and again leave 6 or so inches of wire free at both screws. This is the coupling loop. (see schematic above)

A word of warning...after you build this, be careful of walking down your street or even standing out in front of your house with the loop in your hands and headphones on your head, as your neighbors will think you are either some type of spy, or you are somehow listening in on them, or you are tracking space aliens!!

The 6 turn loop coil connects to the tuning capacitor C1. One wire to the stator and the other to the rotor. That's the only connection to the main loop. The one turn loop coil connects to the radio. After finishing construction check all solder connections, check again to be sure the transistor is connected correctly then turn the volume control VR1 all the way down. This radio has no AVC (automatic volume control) so if you live near an AM transmitter the signal will be VERY loud as you tune it in. Turn on the switch S1 and carefully turn the volume control up to about half way. Now tune around with C1 until you begin to hear stations. Turn the loop until the signal is the strongest. To see what the finished loop antenna looks like, look down at the bottom of this page. There is a picture of me holding it. You can see capacitor C1 clearly.



Here is an easy weekend project.
The Handy Gate Dip Meter

grid dip meter schematic

A dip meter is useful for so many things, that I don't know where to start. It can be used as a signal generator, a resonance indicator, AM detector and more. The coil L1 should be made to plug in to the oscillator so you can use the meter over a very large frequency range. With several plug in coils you could cover from the AM broadcast band up through 2 meters. If you have a frequency counter, you could use it to help make a calibrated dial on the GDO for each of the coils.
A communications receiver could be used in place of the counter just be sure you are hearing the fundamental and not one of the many harmonics from the meter. To use the meter to find the resonant frequency of any LC circuit just hold the coil on the meter near the unknown to couple some energy to it and tune the dial watching for a dip in the reading. A high Q circuit will make a very big dip almost all the way to zero. When you find the biggest dip just read the dial and you will know the resonant frequency of that LC combination. If you know the value of one of the two components, either the "C" or the "L" and you now know the resonant frequency, you can calculate the value of the unknown part. Remember, at resonance both L and C will have equal reactance. An easy no math way to do this is with a reactance chart. Let's say you know the value of "C". Now look up the reactance value for C at that frequency. Next look for that same value of reactance for "L" on the chart and then just read the value of "L" right off the chart.
dip meter plug in coilsBy the way, C1 could be two varactor diodes back to back using a linear pot to adjust the voltage to the diodes and thereby the frequency of the oscillator. However the range of frequencies may not be as great with the same number of plug in coils as when using the mechanical variable capacitor. The photo at the right shows an example of plug in coils. This GDO has an external meter but I think it's better to build the meter right into the box. Less wires and cables hanging around.

heathkit grid dip meter

Here is an OLD advertisement from 1955 for a HeathKit GDO. The HeathKit company was quite popular years ago. I built one of their very first color TV kits in the mid 1960's. That was like,
way cool, back then!
Hmmm, I wonder what $19.50 would be in todays money? $200??

MW Raeceiver_2T_Reflexive_High Z phone

Two Transistor Reflex Radio

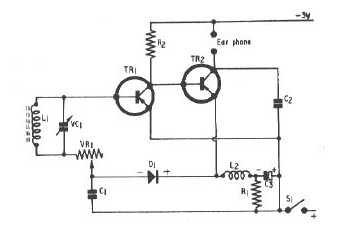

1

Transistors: BC109C
L1/L2 are the antenna coils
If you can't find a 1mH coil (often called a "choke") you can make one by simply winding about 1 metre of thin wire around a piece of match-stick (or something similar).
N.B.Solder the resistors first, then the capacitors, then the coil, then finally, the diode and transistors. This reduces the risk of damage to transistors and diode through overheating.
Printed Circuit Board : Copper side (magnified)

Printed Circuit Board : Component side (magnified)

MW Receiver_2T_Reflex_LT700 Transformer

Author is Rick Anderson

A Reflex radio is similar to the Regenerative receiver design, in that both use a controlled amount of positive feedback of the amplified signal, to reinforce it and obtain extreme sensitivity. Just what is fed back is what sets them apart.

The Regen takes a fraction of the amplified RF signal and feeds it back in phase with the signal coming in from the antenna. As the amount of regeneration is increased, a point is reached where the detector breaks into self-oscillation at the signal frequency (actually, just slightly off from it, which allows a beat note to be formed for CW reception). For the AM broadcast radio listener, this means a loud squealing. Wouldn't it be nice if we could get tremendous gain without that annoying howl? The Reflex design essentially feeds back just the demodulated audio to the RF front end;

the input transistor is pressed into double-duty: it amplifies both the RF and the AF (audio frequencies) at the same time. This gives a large gain without a heterodyne squeal so common to regenerative receivers.


In the circuit above, an incoming station is tuned by the front-end LC circuit. A tap in the lower 3rd or 4th of the inductor feeds the base of Q1; this low-tapping is done for impedance matching; i.e., the L-C tuned circuit would be detuned and its Q lowered from the loading effect of having a 600 ohm transistor base hanging off it, if the transistor were not tapped down on the inductor.


The RF gets amplified by Q1, then fed into a diode-cap pair which basically acts like the detector in a crystal radio, but with RF preamplification. Since the capacitor filters the RF out by shorting it to ground, we find the bottom of the coil at ground for RF while still "hot" for audio frequencies. Now the demodulated (by the diode) and filtered (by the cap) audio is put back into Q1's base. The emitter bypass cap is of a value that gives voltage gain at audio frequencies. The pot controls how much emitter bypassing there is and therefore how much audio feedback occurs. So the transistor is amplifying both RF and audio at the same time! And now, when the "volume" (emitter bypassing) is turned up, we find that there is some audio distortion, but no heterodyne squeal.


Notice also that the diode doubles as a path for DC bias for Q1's base. The 33 mH inductor acts as an RF choke / lowpass filter, along with the caps on either side of it. The 3.3k is Q1's collector load resistor, and you could put a crystal earphone from the bottom of the 3.3k resistor to ground, for a 1-transistor reflex with surprising audio volume (with a decent antenna).


By adding a second audio stage whose collector load is the primary of a small 1k :8 ohm audio transformer, we find that we can run Q2 as a Class-A amp, and that this stage has enough power to drive a decent 4", 8 ohm speaker to a comfortable volume if nearby stations are strong. I found that the cheaper the speaker, the less adequately

the receiver performed.

Considering all the trouble radio designers have gone through in years past to come up with the slickest Class-AB power amp design, it's amazing that we can get good volume with one transistor that isn't even a power amp! (The 2N3904 is a small-signal NPN; it is not a power amp) I've also noticed that the audio is very clean-sounding-- no crossover distortion in this little amp operating Class-A.

Like any simple receiver, this one has its "-isms" and annoyances. One is the lack of AGC (automatic gain control, or automatic volume control). It seems more pronounced in a Reflex than, say, in a Regen radio, that some stations are weak and some are LOUD.... we've grown accustomed to AGC in our superhets and don't realize how spoiled we've become until we listen to a receiver that doesn't have an AGC circuit. Also, it seems to be easily overloaded by strong nearby signals.


Like the crystal radio, it seems to come alive at night, but may not pick up much of anything during the day (again-- AGC normally takes care of the gain adjustments between day and night reception). But I still recommend you build a Reflex! It will amaze you that such a simple radio can work so well.


Source: http://www.tccam.org/Reflex%20AM%20radio.htm

Audio Amplifier_2T_0.25W_LT700 transformer

Source:

MW_2T_TRF_Lafayette 1960 version

Transformer should be LT700

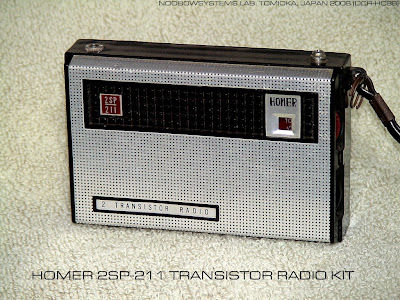

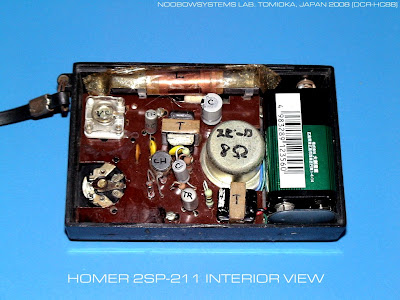

MW_2T_Reflex_Japanese 2SP-211 1974 design




A very simple idea

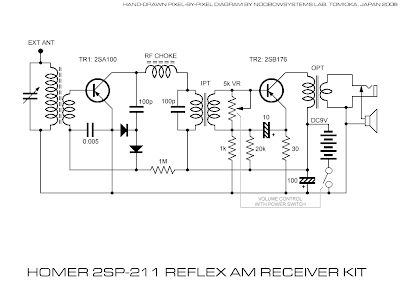

The first transistor is a regen and has negative (RF + audio) feedback!
The negative feedback mitigate the +ve feedback of the regen.
Using the transistor as regen with audio amplification is the whole idea of being Reflectional or Reflex depending on the original name (Reflexaudion).

Anyway it is nostalgic by the audio amplification part that depends on two transformers.
The IPT is LT44 as I guess and The OPT is LT700
Why?
LT44 matches 20k:1k impedance
LT700 matches 1k:8ohms
RFC is ~4mH
Diodes are Shotckey diodes and it shows from the image.

The audio part can be replaced by
One transistor + LM386
The collector of this transistor is connected through the same 1k resistor to make the same AGC effect. Therefore the new design is a modern reflex version though the original still beautiful.
Original Source is in Japanese:

Crystal Radio Methods

These are different configurations for the Crystal Radio with the different purposes!
All the types can be amplified further but the thrill remains when it works alone with no external source of power.

Source:
Source:

Thursday, February 25, 2010

VFO_7MHz_2T used to get SSB out of market radios

Building the VWN QRP VFO
VU2SWX http://brainstorms.in

The VWN QRP used to be a very popular 7MHz AM transmitter in India during the 80s. The transmitter was assembled from locally available parts and very was easy to construct. Nowadays, no one uses AM. However the VFO from the QRP is a cool circuit which you can incorporate in newer design.
Recently one of my young friends, wanted to listen to SSB signals on the 40M band. We built a VWN QRP and placed it near a 3 band philips radio. The long wire was connected to the telescopic areal of the radio. ( Approximately 10 meters) . We hanged the other end of the wire on a nearby tree. The received signal strength on the radio showed a quantum jump. We slowly tuned around 40m band and located some SSB signal. Then the VFO was tuned to the receiver frequency. The SSB signals became very loud and clear. Then we changed the radio and tried the experiment on a cheap Chinese radio ( 10 bands ) . This radio was having a frequency counter. It also received the signals beautifully.
If you are interested in ham radio, this can be your first project. A big thanks to OM Vasanth VU2VWN for designing such a wonderful VFO. Here are the details of the VFO,


The FETS are BFW 10 or BFW11
The styroflex capacitors are no longer available in the market. You can use high quality ceramic disc capacitors . (NP0) . Or look inside some old TV or cordless phones for good disc capacitors.
If you use ordinary ceramic disc capacitors, the oscillator frequency can drift over a time. If you are unable to find NP0 capacitors, try ordinary disks.
Use a 2x gang capacitor . It also may not be available in the local store. Look for a dead pocket radio and pullout the gang capacitor. See the figure below. You can also use other type of gangs like 2J or FM gang. You may have to adjust other values.


Note: The RFC is ~7uH under the given information by the source.

Also, the complete 7MHz transmittter which uses this VFO is here

Wednesday, February 24, 2010

Homemade Air Capacitor 190-3300pF

Build an Air Variable Capacitor

Introduction

Variable capacitors are useful in a lot of situations. But adjustable plate capacitors bigger than 1000 pF are difficult to find, and those that are available tend to be inconveniently large. There are several good tutorials on the Internet for building rotatable air variable capacitors like those found in old AM radios. However, because it's difficult to cut sheet metal into a curved shape while keeping it perfectly flat, the plates have to be kept far apart, which gives them a very low capacitance. The round shape also tends to be bulky. I woke up one day and decided to invent a new design that would be (1) compact and (2) have a high capacitance (preferably above 5 nF). It should be easy to construct using readily available parts. Should be easy, I thought. Next time maybe I'll know better.

TABLE I Composition of aluminum in Venetian blinds
ElementAluminum 6010Aluminum 6011
Cu0.15-0.600.40-0.90
Mg0.6-1.00.6-1.2
Si0.8-1.20.6-1.2
Fe0.501.00
Mn0.20-0.800.80
Ti0.100.20
Cr0.100.30
Zn0.251.50

The idea was to make the plates from the aluminum in a Venetian miniblind, and use an immobilized screw system to convert rotation into translational movement. As the table above shows, Venetian blinds use a high-silicon containing aluminum alloy such as 6010 or 6011. This makes them much springier than ordinary aluminum, allowing them to be easily cut with scissors or a paper cutter without deforming their overall shape.

Theory

As shown in the equation below, the capacitance of a flat plate capacitor depends on the area A, the number of plates (n), and the relative permittivity (εr), also known as dielectric constant, of the medium between the plates. Capacitance is also inversely proportional to the distance d between the plates, which means that the biggest improvement can be made by moving the plates closer together. The equation for a capacitor is

Capacitor formula
where dimensions are all in meters. This is where the great idea of using Venetian blinds comes in. The paint coating on my old Venetian blinds was about 10 microns (0.01 mm) thick. The distance between two painted plates would then be only 20 microns, making the denominator really small. The paint that separates the plates would also have a dielectric constant much higher than air, increasing the capacitance by another 3 to 4-fold.

Not much to the theory, actually.

Mechanical details

The mechanical part turned out to be the easiest. A screw is threaded through a large Plexiglas or Delrin (polyacetal) nut that is prevented from rotating by the plates and by two height-adjusting screws. When the lead screw rotates, rotational motion is converted to linear motion which pulls the capacitor plates farther apart.

For the lead screw, take a five-inch piece of 8-32 threaded steel rod and grind the threads on both ends, leaving a 10.5 cm threaded area as shown in the diagram below. Grind a flat area on the front end for a knob. Cut two 1-5/8" wide pieces of 1/16" x 1 inch angle aluminum for the front and back. Drill holes just big enough for the thread-free part of the lead screw to fit through. The rod must fit tightly in those holes. Mount the aluminum angles underneath the plastic body using countersunk holes for three 4-40 screws in the front. In the back, use two 1-1/4" long 4-40 screws to hold the aluminum angle to the body. They will also hold the plates.

Capacitor diagram
Side view showing four plates.
Capacitor diagram
The other side, viewed from same orientation.

Cut a 3/8 x 5/8 x 3/4" piece of Plexiglas or Delrin and tap an 8-32 hole through it lengthwise to make a square plastic nut. When drilling Plexiglas, drill very slowly, otherwise it will heat up, melt, seize, and possibly crack. If you use metal instead, you will need to find a way to insulate the aluminum plate from the main screw, so the capacitor is not shorted out.

The Nut Assembly
Closeup of nut assembly. A gear and rack system or ball screw system could also have been used.

Attach the 1-1/2 x 3/4 x 1/16" aluminum platform to the plastic nut using two 3-48 screws. Mount two one-inch long 4-40 screws on the aluminum platform so that they are parallel to the two screws in the back. These will hold the front plates. Tap the plastic nut and the aluminum platform and add a couple of height adjusting screws as shown. These prevent the nut from rotating as the knob is turned.

The spring

A spring is essential in order to prevent play in the main screw. Cut a rectangular flat spring from spring metal. Rather than trying to bend it, which will only fatigue the spring, leave it flat and drill two holes in it. Use a 2-56 screw and nut to attach it to the back. The spring in the photo below was from an old wind-up clock that I took apart in 1967. That spring sat around for 41 years before I finally found a use for it. An alternative source of spring metal is those blue metal bands that are used in shipping.

To drill a hole in the spring, place a block of aluminum underneath and clamp the spring to it.

The Spring
Closeup of spring.

Next take an 8-32 nut and grind it perfectly flat on one side. Grind the edges off to make it round. Then fix it in place on the main screw by drilling a small hole and screwing a 00-90 screw through it, or by jamming it against a second nut, so it extends about 1 mm away from the start of the threads. This provides a flat surface to press against the spring. If this is not present, the point where the screw threads start will always be slightly uneven, and the screw will move forward and backward slightly as it is turned.

The finished screw should turn evenly and have no back-and-forth or front-and-back play, and the plastic nut should not rotate when the knob is turned.

The plates

Unfortunately, my great idea of using the paint from the painted Venetian blinds to separate the plates didn't work as planned. If I simply cut the plates with scissors, the edges were never flat enough, and the uninsulated edges would contact each other. So I had to strip the paint off and coat them. But there's a trick to get around this.

The stripping can be done using ordinary paint stripper, which contains methylene chloride. Be sure to do this outdoors or under a fume hood, as this stuff is highly toxic. Other chlorinated solvents, like chloroform, will also work. Solvents like lacquer thinner, turpentine, isopropanol, hexane, acetone, and ethanol do not work.

Cut the strips last, once the mechanism is finished. The strips must overlap by at least 1 mm at the widest setting. Cut a few extra ones, because when you drill the hole, the top and bottom one will probably get all crunked. Clamp the strips together and slowly drill one hole through all of them simultaneously. Then screw them together through the first hole before drilling the second one. To get rid of the curvature, flatten the pieces by gently rolling them against a cylindrical object like the axle of an empty wire spool.

Capacitor
Spacer and plate.

Next, make a large number of spacers from a stripped piece of aluminum. Make them oversized so it's easier to drill the holes. Drill the holes in the same way as for the plates, then cut the spacers to the correct size with a pair of scissors.

When I started this project, I hoped the paint on the Venetian blinds would be sufficient to keep them apart. This turned out not to be the case. If you make the plates from the inside portion of a vane, it's necessary to add more insulation to prevent the plates from short-circuiting. This can be done by adding thin plastic sheets between the plates, or by anodizing the plates. Spray-painting the edges did not work very well.

Another trick is to use only the ends of the vanes. These ends are already flat, so there's no need to strip and coat them. Plus, they are rounded, which reduces arcing if you use the capacitor at a high voltage.

Method 1: Anodizing

Anodizing is probably the best way to insulate the plates. Anodizing leaves a hard black or gold coating that doesn't conduct electricity. The coating is thinner than a plastic sheet (5 to 18 microns, or 0.005 to 0.018 mm thick, compared to at least 0.025 mm for 1 mil plastic). This means you will get a much better capacitor.

Here is the procedure for anodizing. Chromate anodizing works better than plain sulfuric acid anodizing for this type of aluminum.

  1. Strip the paint by soaking the aluminum strips for 5 min in chloroform.
  2. Wash the strips again in chloroform and wipe any remaining paint with a paper towel. Wear gloves and avoid touching the surface of the plate.
  3. Screw the plates together, separating them with metal washers. Connect the plates to the (+) terminal of a DC power supply capable of producing several amperes at 15 volts. One amp is enough to anodize two square inches in about 30 min. Less current will take proportionally longer time.
  4. Connect the (-) terminal to a piece of aluminum. Put both electrodes in a 100 ml beaker, keeping the end with the holes out of the solution. Make sure that only aluminum is in contact with the solution.
  5. Fill the beaker with 15% sulfuric acid containing 1% potassium dichromate. Place the beaker in a larger water-filled container to absorb the heat.
  6. Apply sufficient current to create about 15V across the terminals. Hydrogen and oxygen gas will be produced, and the solution will heat up. It must be at or slightly below room temperature for best results.
  7. Check the resistance of the coating, then rinse and seal the pores in the aluminum oxide coating by boiling in water.
  8. Neutralize the chromate and dispose as toxic waste.

One advantage of anodizing is the high dielectric constant of aluminum oxide (9.34), which is higher than vinyl (3.5-4.5), polypropylene (1.5), air (1.0006), and even glass (4-7). Since capacitance is proportional to the dielectric constant, anodized aluminum should theoretically have 9 times higher capacitance than an air capacitor.

Before installing the plates, add washers if necessary so that both rows of plates are exactly the same height. Then add one plate separated by two spacers on each side, alternating sides so the plates are interleaved. Add another No. 4 washer on top and screw in place. Check for shorts.

Method 2: Plastic sheets

Alternatively, you can use a plastic sheet to separate the plates. This is the easiest and most reliable method if a high capacitance isn't needed. The best material is 3M 9457 Adhesive Transfer Tape, which is 1 mil (0.0254 mm) thick. Some types of packing tape are also 1 mil thick. Completely strip the paint from the plates and stick one piece of the tape on top of each plate, making sure to avoid bubbles. The tape should extend about 1/2 mm from the edge. Leave the part of the plate near the holes uncovered. Put tape only on one side of the plate. Install the plates, using two spacers between each plate, and make sure the plates are interleaved (see diagram). Add a No. 4 washer on top and screw in place. With 25 plates total, this capacitor could be adjusted from 90 to 4500 pF.

Method 3: Use the ends

An even easier way is to use only the left and right ends of the Venetian blind to make your plates. Drill the holes on the side away from the end of the vane. Then dip the side with the holes in paint stripper to remove the outermost 7 millimeters of paint. The rounded outer edges are sufficiently flat that there's no danger of a short circuit as long as the plates are flat, clean, and have a uniform shape. If short circuiting should occur, coat the edges of the plates using a Magic Marker to insulate them. Although this method of making plates is easy, it has two disadvantages: first, you will use eight vanes from your Venetian blind instead of only two or three; and second, the uninsulated edges are fairly close together, so high voltage could still cause arcing. For receiving antenna applications, this is not a problem. The paint is only about ten microns thick, so you can get a high capacitance with only a few plates. Two spacers per plate is sufficient.

Side view of capacitor showing plates
Side view showing plates.

With 16 plates, this capacitor could be adjusted from 90 to 3400 pF. By increasing the number of plates to 24 and reducing the total number of spacers from 48 to 36, it was possible to increase the maximum capacity to 8400 pF. However, it is not recommended to use fewer than two spacers per plate, because it causes the plates to bend.

Summary

The Venetian blind variable capacitor has several advantages over the conventional type:

  1. It is very easy to get a very high capacitance and a good high/low capacitance ratio. With only 24 plates, it had about 4500 pF. It had a minimum of about 90 pF, for a ratio of 50:1. This compares with only 15-365 pF for commercial variable capacitors of roughly the same size. If you only need 360 pF, three or four plates should be sufficient (or, you could make the plates smaller).
  2. Multiple turns eliminates need for gear reduction and allows highly accurate tuning. No expensive gear reduction system is needed.
  3. It is easy to add or remove plates. More plates can be slapped on with four screws for higher capacitance. This makes it easy to try different designs or coating methods.
  4. Plastic nut provides smooth, silent rotation.
  5. It's more compact and fewer plates than a conventional rotating design because the coated plates allow a closer spacing. The overall size was 4.5 x 1.75 x 1 inch. With a little effort, the height could easily be reduced to half of that, or even less. The design is also potentially more precise than the rotating plate design, making it useful for other applications.
  6. No worries about plates bending and touching each other because they are already touching each other.
  7. Easier to construct because the plates are rectangular instead of circular. Venetian blinds can be cut with scissors.
  8. Requires less torque to turn than a geared rotating design. This makes it easy to attach a motor for remote control.
  9. The knob turns in the direction you would expect: clockwise for lower capacitance and higher frequency.

There are also some disadvantages:

  1. More rotations are required to cover the entire range.
  2. For high voltage applications, the plates have to be stripped and anodized or coated with insulating tape. Anodizing is a fair amount of work.
  3. This turned out to be a lot more work than I originally thought.

Improved design

Improved version of capacitor
Improved version of capacitor

To get better precision, an Acme thread should be used, and the moving platform should be supported on both sides. I made a 1/4"-16 Acme tap and used it to create a nut out of Delrin. On the opposite side, there is another piece of Delrin that slides freely over a 1/4" polished steel rod. Screw threads are cut on each end of the rod to hold it in place. I also used 1/16" steel instead of aluminum. With 20 plates on each side (40 plates total), the capacitance was 350-6530 pF. With 10 plates on each side (20 plates total), the capacitance was 190-3300 pF.

Source: http://brneurosci.org/capacitor.html
